Taper bush
Celosvětový průmyslový standard pro upevnění řemenic, řetězových kol a spojek na hnací hřídel.
Taper Bush jsou spolehlivým a časově úsporným řešením pro snadnou montáž a demontáž z hřídelí pomocí klíče.

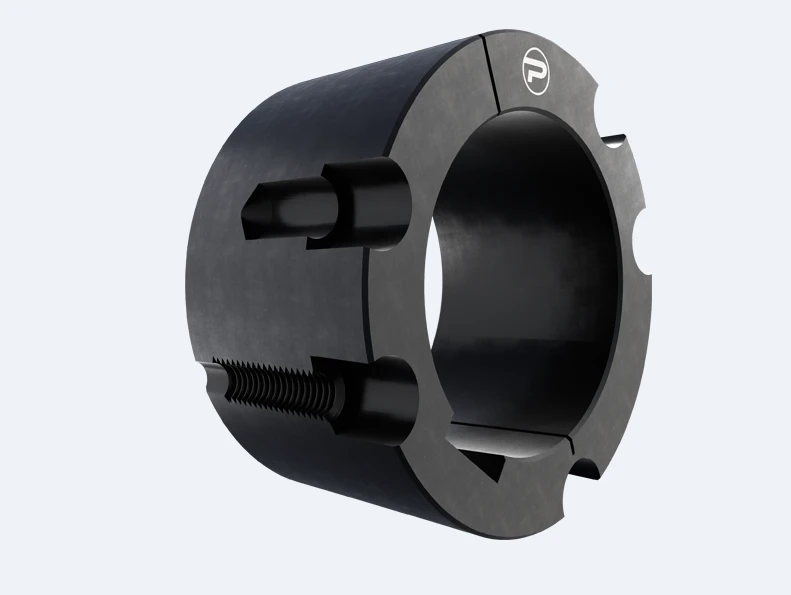

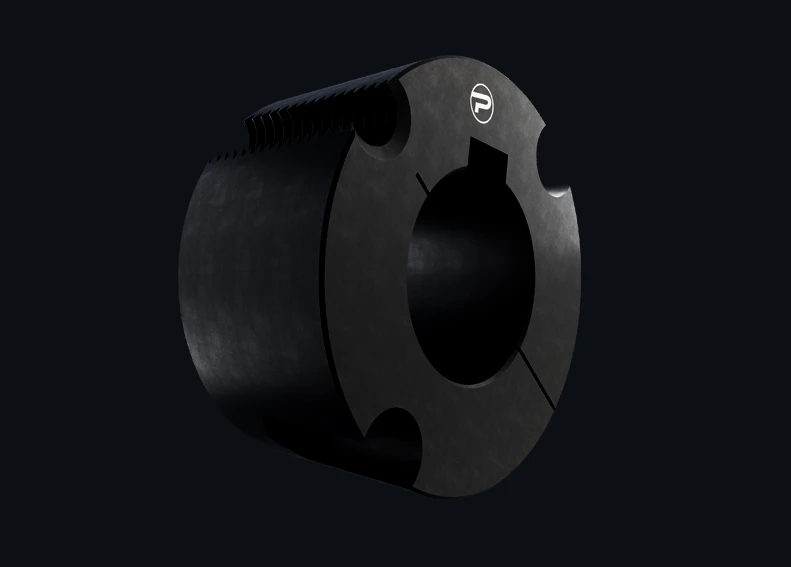

Kuželové pouzdro z litiny (GG25) s fosfátovanou povrchovou úpravou, dokončeným otvorem a drážkou pro pero. Vhodné pro mnoho různých řemenic, řetězových kol a spojek.
NEPOTŘEBUJETE OBRÁBĚNÍ
Kompletní řada pouzder se standardním otvorem poskytuje flexibilitu vašim řemenicím, řetězovým kolům nebo spojkám bez nutnosti dalšího obrábění.
RYCHLÁ INSTALACE
Rychlá a snadná montáž a demontáž řemenic, řetězových kol a spojek.
STANDARDNÍ KLÍČOVÉ DRÁŽKY
Klíčové drážky pro metrické otvory odpovídají normě DIN 6885 / SS2305 a pro imperiální otvory odpovídají normě BS 46:Pt 1.
Široký rozsah
K dispozici jsou pouzdra od velikosti 1008 do 5050
Dostupné velikosti otvorů od 10 mm do 125 mm.
Normy
DIN 6885/SS2305 (metrický otvor)
BS 46:Pt 1 (imperiální otvor)
Úprava povrchu
Fosfátový povlak pro zvýšenou odolnost proti korozi
Technické informace
| Bush No. | L (mm) | A (mm) | D (mm) | Screw dia x length (inch | BSW) | Hex key dim. | Tightening torque (Nm) |
|---|---|---|---|---|---|---|
| 1008 | 22.3 | 35.1 | 33.7 | 1/4 x 1/2 | 3 | 5.6 |
| 1108 | 22.3 | 38.2 | 36.9 | 1/4 x 1/2 | 3 | 5.6 |
| 1210 | 25.4 | 47.5 | 44.5 | 3/8 x 5/8 | 5 | 20 |
| 1215 | 38.1 | 47.5 | 44.5 | 3/8 x 5/8 | 5 | 20 |
| 1310 | 25.4 | 50.7 | 47.6 | 3/8 x 5/8 | 5 | 20 |
| 1610 | 25.4 | 57.1 | 53.9 | 3/8 x 5/8 | 5 | 20 |
| 1615 | 38.1 | 57.1 | 53.9 | 3/8 x 5/8 | 5 | 20 |
| 2012 | 31.8 | 69.8 | 66.7 | 7/16 x 7/8 | 6 | 31 |
| 2517 | 44.5 | 85.7 | 82.6 | 1/2 x 1 | 6 | 48 |
| 3020 | 50.8 | 107.9 | 101.6 | 5/8 x 1 1/4 | 8 | 90 |
| 3030 | 76.2 | 107.9 | 101.6 | 5/8 x 1 1/4 | 8 | 90 |
| 3525 | 63.5 | 126.8 | 122.6 | 1/2 x 1 1/2 | 10 | 113 |
| 3535 | 88.9 | 126.8 | 122.6 | 1/2 x 1 1/2 | 10 | 113 |
| 4030 | 76.2 | 145.8 | 140.7 | 5/8 x 1 3/4 | 12 | 170 |
| 4040 | 101.6 | 145.8 | 140.7 | 5/8 x 1 3/4 | 12 | 170 |
| 4535 | 88.9 | 161.7 | 155.7 | 3/4 x 2 | 14 | 192 |
| 4545 | 114.3 | 161.7 | 155.7 | 3/4 x 2 | 14 | 192 |
| 5040 | 101.6 | 177.6 | 170.7 | 7/8 x 2 1/4 | 14 | 271 |
| 5050 | 127.0 | 177.6 | 170.7 | 7/8 x 2 1/4 | 14 | 271 |
Bore in mm:
Standard keyway, the keyway follows standard DIN 6885 part 1.
Shallow keyway, the keyway follows standard DIN 6885 part 3.
Bore in inch:
Keyway according to BS46: Part 1
| Bush No. | Bore size in mm and inch | Keyway |
|---|---|---|
| 1008 | mm 10 - 22 | Standard |
| 1008 | mm 24 - 25 | Shallow |
| 1008 | in. 1/2 - 7/8 | Standard |
| 1008 | in. 1 5/6 - 1 | Shallow |
| 1108 | mm 10 - 25 | Standard |
| 1108 | mm 28 | Shallow |
| 1108 | in. 1/2 - 1 | Standard |
| 1108 | in. 1 1/16 - 1 1/8 | Shallow |
| 1210 | mm 10 - 32 | Standard |
| 1210 | in. 1/2 - 1 1/4 | Standard |
| 1215 | mm 11 - 32 | Standard |
| 1215 | in. 1/2 - 1 1/4 | Standard |
| 1310 | mm 14 - 35 | Standard |
| 1310 | in. 1/2 - 1 3/8 | Standard |
| 1610 | mm 10 - 42 | Standard |
| 1610 | in. 1/2 - 1 1/2 | Standard |
| 1610 | in. 1 9/16 - 1 5/8 | Shallow |
| 1615 | mm 14 - 40 | Standard |
| 1615 | mm 42 | Shallow |
| 1615 | in. 1/2 - 1 1/2 | Standard |
| 1615 | in. 1 9/16 - 1 5/8 | Shallow |
| 2012 | mm 10 - 50 | Standard |
| 2012 | in. 1/2 - 2 | Standard |
| 2517 | mm 16 - 65 | Standard |
| 2517 | in. 1/2 - 2 1/2 | Standard |
| 3020 | mm 24 - 75 | Standard |
| 3020 | in. 1 3/16 - 3 | Standard |
| 3030 | mm 24 - 75 | Standard |
| 3030 | in. 1 3/16 - 3 | Standard |
| 3525 | mm 30 - 95 | Standard |
| 3525 | mm 100 | Shallow |
| 3525 | in. 1 3/16 - 3 1/4 | Standard |
| 3525 | in. 3 5/16 - 3 1/2 | Shallow |
| 3535 | mm 30 - 90 | Standard |
| 3535 | in. 1 3/16 - 3 1/4 | Standard |
| 3535 | in. 3 5/16 - 3 1/2 | Shallow |
| 4030 | mm 40 - 110 | Standard |
| 4030 | mm 115 | Shallow |
| 4030 | in. 1 7/16 - 3 3/4 | Standard |
| 4030 | in. 3 7/8 - 4 | Shallow |
| 4040 | mm 40 - 110 | Standard |
| 4040 | in. 1 7/16 - 3 3/4 | Standard |
| 4040 | in. 3 7/8 - 4 | Shallow |
| 4535 | mm 42 - 125 | Standard |
| 4535 | in. 1 15/16 - 4 1/4 | Standard |
| 4535 | in. 4 3/8 - 4 1/2 | Shallow |
| 4545 | mm 42 - 115 | Standard |
| 4545 | in. 1 15/16 - 4 1/4 | Standard |
| 4545 | in. 4 3/8 - 4 1/2 | Shallow |
| 5040 | mm 48 - 125 | Standard |
| 5040 | in. 2 7/16 - 5 | Standard |
| 5050 | mm 48 - 125 | Standard |
| 5050 | in. 2 7/16 - 5 | Standard |
| Bush size | Bore Diameter (mm) | Values for transmittable torque without key (Nm) | Values for tightening (Nm) |
|---|---|---|---|
| 1008 | 12 | 29 | 5.6 |
| 1008 | 19 | 51 | 5.6 |
| 1008 | 24 | 66 | 5.6 |
| 1108 | 12 | 28 | 5.6 |
| 1108 | 19 | 49 | 5.6 |
| 1108 | 24 | 64 | 5.6 |
| 1108 | 28 | 79 | 5.6 |
| 1210/15 | 16 | 82 | 20 |
| 1210/15 | 19 | 105 | 20 |
| 1210/15 | 24 | 142 | 20 |
| 1210/15 | 32 | 210 | 20 |
| 1610/15 | 19 | 98 | 20 |
| 1610/15 | 24 | 135 | 20 |
| 1610/15 | 38 | 240 | 20 |
| 1610/15 | 42 | 265 | 20 |
| 2012 | 24 | 165 | 31 |
| 2012 | 38 | 310 | 31 |
| 2012 | 42 | 340 | 31 |
| 2012 | 48 | 400 | 31 |
| 2012 | 50 | 420 | 31 |
| 2517/25 | 24 | 220 | 48 |
| 2517/25 | 38 | 320 | 48 |
| 2517/25 | 42 | 430 | 48 |
| 2517/25 | 48 | 510 | 48 |
| 2517/25 | 55 | 600 | 48 |
| 2517/25 | 60 | 670 | 48 |
*Bore diameter is only available in short bush type
| Bush size | Bore Diameter (mm) | Values for transmittable torque without key (Nm) | Values for tightening (Nm) |
|---|---|---|---|
| 3020/30 | 38 | 520 | 90 |
| 3020/30 | 48 | 730 | 90 |
| 3020/30 | 55 | 890 | 90 |
| 3020/30 | 60 | 970 | 90 |
| 3020/30 | 75 | 1300 | 90 |
| 3525/35 | 42 | 1000 | 113 |
| 3525/35 | 60 | 1580 | 113 |
| 3525/35 | 75 | 2150 | 113 |
| 3525/35 | 90 | 2600 | 113 |
| 3525/35 | 100* | 3075 | 113 |
| 4030/40 | 48 | 1700 | 170 |
| 4030/40 | 60 | 2300 | 170 |
| 4030/40 | 75 | 3900 | 170 |
| 4030/40 | 100 | 4400 | 170 |
| 4030/40 | 115* | 5150 | 170 |
| 4535/45 | 55 | 2500 | 192 |
| 4535/45 | 75 | 3900 | 192 |
| 4535/45 | 100 | 5500 | 192 |
| 4535/45 | 110 | 6300 | 192 |
| 4535/45 | 125* | 6625 | 192 |
| 5040/50 | 75 | 3950 | 271 |
| 5040/50 | 100 | 5650 | 271 |
| 5040/50 | 125 | 7370 | 271 |
| 5040/50 | 130* | 7725 | 271 |
