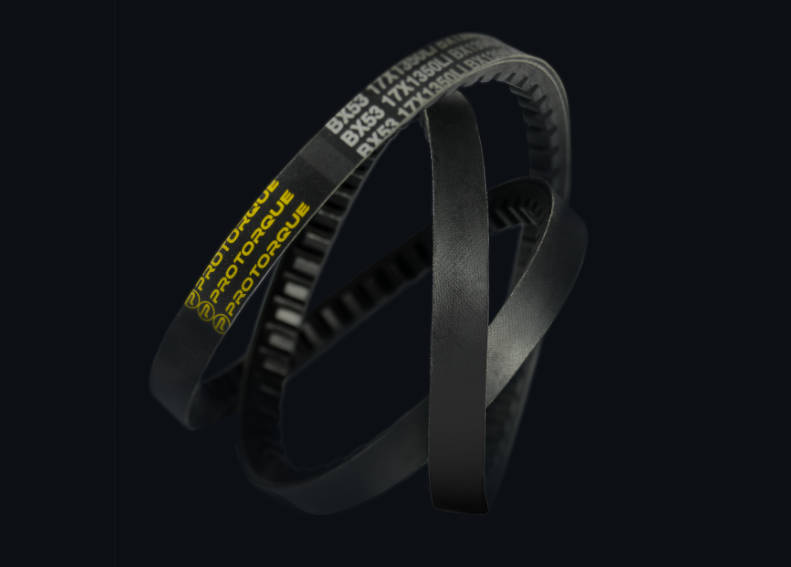

Cogged classical v-belts
The perfect combination of high performance and flexibility.
Suitable for a huge range of industrial applications, cogged raw edge classical v-belts are the perfect option for almost any machine operating a standard classical section drive. The improved flexibility of the cogged v-belt also makes it the ideal solution for applications with small pulley diameters.
Universal classical profile coupled with a cogged cushion allows for increased belt flexibility and improved longer lasting performance, when compared to wrapped v-belts.
Lower depth allows effective running on smaller diameter pulleys. Protorque® cogged v-belts are designated to be used with V-Belt pulleys according to DIN 2217 / DIN 2211 or ISO4183.
HIGHLY FLEXIBLE

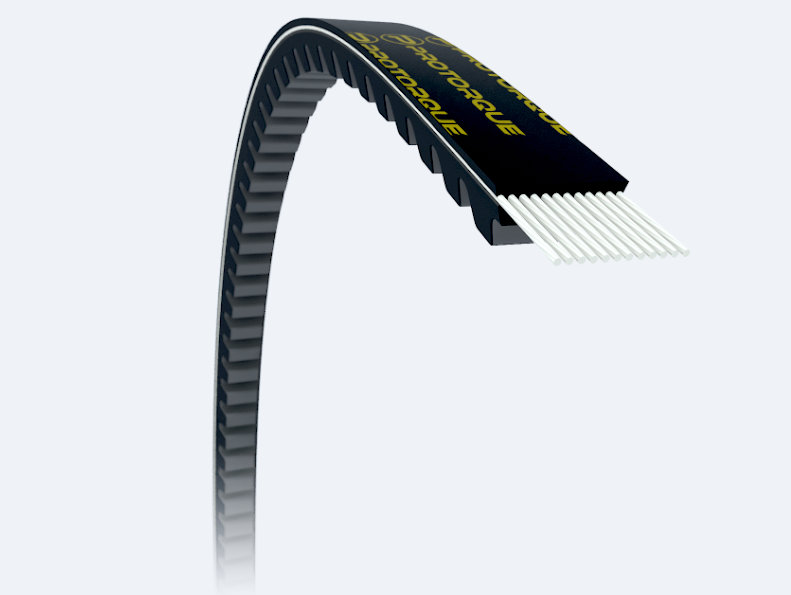

Multi-layered heavy duty industrial backing fabric protects the belts components and supports its tension cords to allow them to achieve high levels of flexibility.
HIGHER DYNAMIC LOAD
Specially treated low stretch polyester tension cords provide higher dynamic load capability and resistance to flex fatigue and shock loads.
IMPROVED OPERATION
Thinner profile cogged cushion promotes even greater flexibility and allows better heat dissipation and improved operation on smaller pulley diameters.
Thinner Cogged Profile
Runs effectively on smaller pulley diameters.
Consistent Length L=L
As per ISO specifications.
Temperature operating range
-40°C TO +70°C
Resistant
Excellent resistance to dust, abrasion and wear.
Good resistance to ozone and sunlight.
Resistant to mineral oil.
Antistatic
Meets ISO 1813 antistatic requirements.
Friction
Higher coefficient of friction.
Standards
Meets RoHS and REACH requirements.
DIN 2215 – ISO 4184 / IP20 RMA-ANSI / BS 3790.
Technical Information
| ISO 4184 | ZX | AX | BX | CX |
|---|---|---|---|---|
| DIN 2215 | 10 | 13 | 17 | 22 |
| Section WxH (mm) | 10x6 | 13x8 | 17x11 | 22x14 |
| Datum Width (mm) | 8.5 | 11 | 14 | 19 |
| Belt Weight per meter (Kg/m) | 0.05 | 0.12 | 0.19 | 0.32 |
| Min. pulley diameter (mm) | 40 | 56 | 90 | 140 |
| Max flexing frequency (s-1) | 120 | 120 | 120 | 120 |
| Max belt speed (m/s) | 50 | 50 | 50 | 50 |
| Min. length (mm) | 520 | 593 | 655 | 1148 |
| Max. length (mm) | 1420 | 4424 | 3700 | 3500 |
Raw edge molded cog classical V-belts are designed to run in pulleys according to DIN 2217/DIN 2211 or ISO 4183.
Product Range
Sections available
| Belt reference (Inch) | Inside Length (mm) | Datum Length (mm) |
|---|---|---|
| ZX 19.50 | 495 | 520 |
| ZX 20 | 510 | 530 |
| ZX 21.50 | 545 | 565 |
| ZX 23 | 585 | 610 |
| ZX 24 | 610 | 635 |
| ZX 25 | 635 | 660 |
| ZX 26 | 660 | 690 |
| ZX 27 | 685 | 710 |
| ZX 28 | 710 | 735 |
| ZX 29 | 735 | 760 |
| ZX 30 | 760 | 787 |
| ZX 31.50 | 800 | 825 |
| ZX 32.50 | 825 | 850 |
| ZX 33 | 840 | 865 |
| ZX 36 | 915 | 940 |
| ZX 37 | 945 | 972 |
| ZX 40 | 1016 | 1038 |
| ZX 42 | 1070 | 1100 |
| ZX 44 | 1120 | 1142 |
| ZX 45 | 1145 | 1170 |
| ZX 52 | 1320 | 1350 |
| ZX 55 | 1400 | 1420 |
| Belt reference (Inch) | Inside Length (mm) | Datum Length (mm) |
|---|---|---|
| AX 22 | 560 | 593 |
| AX 23 | 587 | 620 |
| AX 24 | 610 | 640 |
| AX 25 | 630 | 660 |
| AX 25.50 | 650 | 680 |
| AX 26 | 660 | 690 |
| AX 27 | 686 | 716 |
| AX 27.50 | 700 | 730 |
| AX 28 | 710 | 743 |
| AX 28.50 | 720 | 750 |
| AX 29 | 730 | 760 |
| AX 29.50 | 750 | 780 |
| AX 30 | 767 | 800 |
| AX 31 | 787 | 820 |
| AX 31.50 | 800 | 830 |
| AX 32 | 813 | 850 |
| AX 33 | 838 | 870 |
| AX 34 | 860 | 900 |
| AX 35 | 889 | 919 |
| AX 36 | 914 | 950 |
| AX 37 | 940 | 970 |
| AX 37.50 | 950 | 980 |
| AX 38 | 965 | 1000 |
| AX 39 | 992 | 1020 |
| AX 40 | 1016 | 1040 |
| AX 41 | 1041 | 1071 |
| AX 42 | 1067 | 1100 |
| AX 42.50 | 1080 | 1110 |
| AX 43 | 1100 | 1120 |
| AX 44 | 1120 | 1150 |
| AX 45 | 1143 | 1180 |
| AX 46 | 1168 | 1200 |
| AX 47 | 1200 | 1230 |
| AX 48 | 1220 | 1250 |
| AX 49 | 1250 | 1280 |
| AX 50 | 1270 | 1300 |
| AX 51 | 1300 | 1320 |
| AX 52 | 1320 | 1350 |
| AX 53 | 1346 | 1380 |
| AX 54 | 1372 | 1400 |
| AX 55 | 1400 | 1430 |
| AX 56 | 1422 | 1450 |
| AX 57 | 1450 | 1480 |
| AX 58 | 1475 | 1500 |
| AX 59 | 1500 | 1530 |
| AX 60 | 1525 | 1557 |
| AX 61 | 1550 | 1580 |
| AX 62 | 1575 | 1600 |
| AX 63 | 1600 | 1630 |
| AX 64 | 1625 | 1650 |
| AX 65 | 1650 | 1680 |
| AX 66 | 1676 | 1700 |
| AX 67 | 1700 | 1730 |
| AX 68 | 1725 | 1750 |
| AX 69 | 1750 | 1780 |
| AX 70 | 1775 | 1800 |
| AX 71 | 1800 | 1840 |
| AX 72 | 1825 | 1850 |
| AX 73 | 1854 | 1884 |
| AX 74 | 1880 | 1910 |
| AX 75 | 1900 | 1930 |
| AX 76 | 1930 | 1965 |
| AX 77 | 1956 | 1989 |
| AX 78 | 1980 | 2013 |
| AX 79 | 2000 | 2030 |
| AX 80 | 2032 | 2062 |
| AX 81 | 2060 | 2093 |
| AX 82 | 2083 | 2120 |
| AX 83 | 2100 | 2133 |
| AX 84 | 2134 | 2170 |
| AX 85 | 2160 | 2193 |
| AX 86 | 2187 | 2220 |
| AX 87 | 2210 | 2240 |
| AX 88 | 2240 | 2270 |
| AX 89 | 2261 | 2300 |
| AX 90 | 2286 | 2325 |
| AX 91 | 2311 | 2340 |
| AX 92 | 2337 | 2367 |
| AX 93 | 2360 | 2400 |
| AX 94 | 2388 | 2418 |
| AX 95 | 2413 | 2450 |
| AX 96 | 2438 | 2468 |
| AX 97 | 2464 | 2500 |
| AX 98 | 2500 | 2530 |
| AX 99 | 2520 | 2560 |
| AX 103 | 2620 | 2650 |
| AX 105 | 2667 | 2700 |
| AX 110 | 2800 | 2830 |
| AX 112 | 2845 | 2880 |
| AX 120 | 3048 | 3080 |
| AX 128 | 3250 | 3280 |
| AX 144 | 3658 | 3688 |
| AX 173 | 4394 | 4424 |
| Belt reference (Inch) | Inside Length (mm) | Datum Length (mm) |
|---|---|---|
| BX 24 | 615 | 655 |
| BX 25 | 630 | 670 |
| BX 26 | 655 | 695 |
| BX 27 | 686 | 726 |
| BX 28 | 710 | 750 |
| BX 30 | 760 | 800 |
| BX 31 | 787 | 830 |
| BX 32 | 810 | 850 |
| BX 33 | 840 | 880 |
| BX 33.50 | 850 | 890 |
| BX 34 | 865 | 910 |
| BX 35 | 889 | 929 |
| BX 36 | 917 | 960 |
| BX 37 | 940 | 990 |
| BX 38 | 965 | 1000 |
| BX 39 | 990 | 1030 |
| BX 40 | 1016 | 1060 |
| BX 41 | 1040 | 1080 |
| BX 42 | 1067 | 1100 |
| BX 42.50 | 1080 | 1120 |
| BX 43 | 1090 | 1120 |
| BX 44 | 1120 | 1150 |
| BX 45 | 1150 | 1180 |
| BX 46 | 1175 | 1220 |
| BX 46.50 | 1180 | 1225 |
| BX 47 | 1200 | 1240 |
| BX 48 | 1225 | 1260 |
| BX 49 | 1250 | 1280 |
| BX 50 | 1270 | 1320 |
| BX 51 | 1300 | 1340 |
| BX 52 | 1320 | 1350 |
| BX 53 | 1350 | 1394 |
| BX 54 | 1372 | 1400 |
| BX 55 | 1400 | 1435 |
| BX 56 | 1422 | 1450 |
| BX 57 | 1450 | 1500 |
| BX 58 | 1473 | 1518 |
| BX 59 | 1500 | 1550 |
| BX 60 | 1525 | 1564 |
| BX 61 | 1550 | 1600 |
| BX 62 | 1575 | 1620 |
| BX 63 | 1600 | 1650 |
| BX 64 | 1625 | 1670 |
| BX 65 | 1650 | 1700 |
| BX 66 | 1676 | 1720 |
| BX 67 | 1700 | 1750 |
| BX 68 | 1725 | 1775 |
| BX 69 | 1750 | 1800 |
| BX 70 | 1775 | 1825 |
| BX 71 | 1800 | 1850 |
| BX 72 | 1829 | 1870 |
| BX 73 | 1850 | 1900 |
| BX 74 | 1880 | 1920 |
| BX 75 | 1900 | 1950 |
| BX 76 | 1930 | 1980 |
| BX 77 | 1950 | 2000 |
| BX 78 | 1981 | 2025 |
| BX 79 | 2000 | 2050 |
| BX 80 | 2032 | 2070 |
| BX 81 | 2060 | 2100 |
| BX 82 | 2083 | 2120 |
| BX 83 | 2100 | 2150 |
| BX 84 | 2134 | 2174 |
| BX 85 | 2160 | 2200 |
| BX 86 | 2185 | 2225 |
| BX 87 | 2210 | 2240 |
| BX 88 | 2240 | 2279 |
| BX 89 | 2261 | 2300 |
| BX 90 | 2286 | 2330 |
| BX 91 | 2300 | 2340 |
| BX 92 | 2337 | 2380 |
| BX 93 | 2360 | 2400 |
| BX 94 | 2388 | 2440 |
| BX 95 | 2413 | 2450 |
| BX 96 | 2438 | 2480 |
| BX 97 | 2465 | 2500 |
| BX 98 | 2500 | 2540 |
| BX 100 | 2540 | 2584 |
| BX 102 | 2600 | 2640 |
| BX 105 | 2667 | 2700 |
| BX 108 | 2750 | 2790 |
| BX 112 | 2845 | 2895 |
| BX 115 | 2921 | 2964 |
| BX 120 | 3048 | 3091 |
| BX 128 | 3250 | 3300 |
| BX 136 | 3450 | 3500 |
| BX 144 | 3658 | 3700 |
| Belt reference (Inch) | Inside Length (mm) | Datum Length (mm) |
|---|---|---|
| CX 43 | 1090 | 1148 |
| CX 49 | 1250 | 1300 |
| CX 51 | 1295 | 1353 |
| CX 52 | 1320 | 1378 |
| CX 55 | 1400 | 1458 |
| CX 60 | 1524 | 1582 |
| CX 62 | 1574 | 1632 |
| CX 67 | 1700 | 1758 |
| CX 68 | 1727 | 1785 |
| CX 71 | 1800 | 1858 |
| CX 75 | 1900 | 1957 |
| CX 79 | 2000 | 2058 |
| CX 81 | 2062 | 2120 |
| CX 85 | 2159 | 2217 |
| CX 90 | 2286 | 2350 |
| CX 93 | 2360 | 2418 |
| CX 96 | 2438 | 2500 |
| CX 100 | 2540 | 2600 |
| CX 105 | 2667 | 2725 |
| CX 109 | 2770 | 2820 |
| CX 112 | 2845 | 2903 |
| CX 120 | 3048 | 3106 |
| CX 128 | 3250 | 3308 |
| CX 136 | 3450 | 3500 |
